chore: replace big_text with hardcoded logo (#1203)

Browse source
big_text.rs was a copy of the code from tui-big-text and was getting
gradually out of sync with the original crate. It was also rendering
something a bit different than the Ratatui logo. This commit replaces
the big_text.rs file with a much smaller string representation of the
Ratatui logo.

![demo2](https://raw.githubusercontent.com/ratatui-org/ratatui/images/examples/demo2-destroy.gif)
This commit is contained in:
Josh McKinney 2024-08-03 16:08:59 -07:00 committed by GitHub
parent a80a8a6a47
commit edc2af9822
No known key found for this signature in database
GPG key ID: B5690EEEBB952194
4 changed files with 16 additions and 861 deletions
Show stats Download patch file Download diff file Expand all files Collapse all files

841
examples/demo2/big_text.rs
View file

@ -1,841 +0,0 @@
//! [tui-big-text] is a rust crate that renders large pixel text as a [Ratatui] widget using the
//! glyphs from the [font8x8] crate.
//!

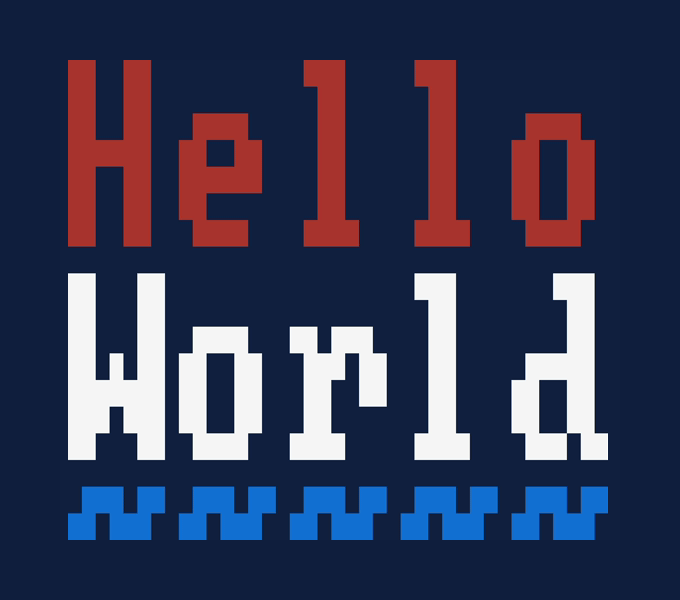

//! ![Hello World example](https://vhs.charm.sh/vhs-2UxNc2SJgiNqHoowbsXAMW.gif)
//!
//! # Installation
//!
//! ```shell
//! cargo add ratatui tui-big-text
//! ```
//!
//! # Usage
//!
//! Create a [`BigText`] widget using `BigTextBuilder` and pass it to [`Frame::render_widget`] to
//! render be rendered. The builder allows you to customize the [`Style`] of the widget and the
//! [`PixelSize`] of the glyphs. The [`PixelSize`] can be used to control how many character cells
//! are used to represent a single pixel of the 8x8 font.
//!
//! # Example
//!
//! ```rust
//! use anyhow::Result;
//! use ratatui::{
//! backend::{self, Backend, CrosstermBackend},
//! buffer::{self, Buffer},
//! layout::{self, Alignment, Constraint, Direction, Layout, Margin, Rect},
//! style::{self, Color, Modifier, Style, Styled, Stylize},
//! symbols::{self, Marker},
//! text::{self, Line, Masked, Span, Text},
//! widgets::{block::BlockExt, StatefulWidget, Widget},
//! CompletedFrame, Frame, Terminal, TerminalOptions, Viewport,
//! };
//! use tui_big_text::{BigTextBuilder, PixelSize};
//!
//! fn render(frame: &mut Frame) -> Result<()> {
//! let big_text = BigTextBuilder::default()
//! .pixel_size(PixelSize::Full)
//! .style(Style::new().blue())
//! .lines(vec![
//! "Hello".red().into(),
//! "World".white().into(),
//! "~~~~~".into(),
//! ])
//! .build()?;
//! frame.render_widget(big_text, frame.size());
//! Ok(())
//! }
//! ```
//!
//! [tui-big-text]: https://crates.io/crates/tui-big-text
//! [Ratatui]: https://crates.io/crates/ratatui
//! [font8x8]: https://crates.io/crates/font8x8
//! [`BigText`]: crate::BigText
//! [`PixelSize`]: crate::PixelSize
//! [`Frame::render_widget`]: ratatui::Frame::render_widget
//! [`Style`]: ratatui::style::Style
use std::cmp::min;
use derive_builder::Builder;
use font8x8::UnicodeFonts;
use ratatui::{
buffer::Buffer,
layout::Rect,
style::Style,
text::{Line, StyledGrapheme},
widgets::Widget,
};
#[allow(unused)]
#[derive(Debug, Clone, Copy, Eq, PartialEq, Hash, Default)]
pub enum PixelSize {
#[default]
/// A pixel from the 8x8 font is represented by a full character cell in the terminal.
Full,
/// A pixel from the 8x8 font is represented by a half (upper/lower) character cell in the
/// terminal.
HalfHeight,
/// A pixel from the 8x8 font is represented by a half (left/right) character cell in the
/// terminal.
HalfWidth,
/// A pixel from the 8x8 font is represented by a quadrant of a character cell in the terminal.
Quadrant,
}
/// Displays one or more lines of text using 8x8 pixel characters.
///
/// The text is rendered using the [font8x8](https://crates.io/crates/font8x8) crate.
///
/// Using the `pixel_size` method, you can also chose, how 'big' a pixel should be.
/// Currently a pixel of the 8x8 font can be represented by one full or half
/// (horizontal/vertical/both) character cell of the terminal.
///
/// # Examples
///
/// ```rust
/// use ratatui::{
/// backend::{self, Backend, CrosstermBackend},
/// buffer::{self, Buffer},
/// layout::{self, Alignment, Constraint, Direction, Layout, Margin, Rect},
/// style::{self, Color, Modifier, Style, Styled, Stylize},
/// symbols::{self, Marker},
/// text::{self, Line, Masked, Span, Text},
/// widgets::{block::BlockExt, StatefulWidget, Widget},
/// CompletedFrame, Frame, Terminal, TerminalOptions, Viewport,
/// };
/// use tui_big_text::{BigTextBuilder, PixelSize};
///
/// BigText::builder()
/// .pixel_size(PixelSize::Full)
/// .style(Style::new().white())
/// .lines(vec![
/// "Hello".red().into(),
/// "World".blue().into(),
/// "=====".into(),
/// ])
/// .build();
/// ```
///
/// Renders:
///
/// ```plain
/// ██ ██ ███ ███
/// ██ ██ ██ ██
/// ██ ██ ████ ██ ██ ████
/// ██████ ██ ██ ██ ██ ██ ██
/// ██ ██ ██████ ██ ██ ██ ██
/// ██ ██ ██ ██ ██ ██ ██
/// ██ ██ ████ ████ ████ ████
///
/// ██ ██ ███ ███
/// ██ ██ ██ ██
/// ██ ██ ████ ██ ███ ██ ██
/// ██ █ ██ ██ ██ ███ ██ ██ █████
/// ███████ ██ ██ ██ ██ ██ ██ ██
/// ███ ███ ██ ██ ██ ██ ██ ██
/// ██ ██ ████ ████ ████ ███ ██
///
/// ███ ██ ███ ██ ███ ██ ███ ██ ███ ██
/// ██ ███ ██ ███ ██ ███ ██ ███ ██ ███
/// ```
#[derive(Debug, Builder, Clone, PartialEq, Eq, Hash)]
pub struct BigText<'a> {
/// The text to display
#[builder(setter(into))]
lines: Vec<Line<'a>>,
/// The style of the widget
///
/// Defaults to `Style::default()`
#[builder(default)]
style: Style,
/// The size of single glyphs
///
/// Defaults to `BigTextSize::default()` (=> `BigTextSize::Full`)
#[builder(default)]
pixel_size: PixelSize,
}
impl Widget for BigText<'_> {
fn render(self, area: Rect, buf: &mut Buffer) {
let layout = layout(area, self.pixel_size);
for (line, line_layout) in self.lines.iter().zip(layout) {
for (g, cell) in line.styled_graphemes(self.style).zip(line_layout) {
render_symbol(&g, cell, buf, self.pixel_size);
}
}
}
}
/// Returns how many cells are needed to display a full 8x8 glyphe using the given font size
const fn cells_per_glyph(size: PixelSize) -> (u16, u16) {
match size {
PixelSize::Full => (8, 8),
PixelSize::HalfHeight => (8, 4),
PixelSize::HalfWidth => (4, 8),
PixelSize::Quadrant => (4, 4),
}
}
/// Chunk the area into as many x*y cells as possible returned as a 2D iterator of `Rect`s
/// representing the rows of cells.
/// The size of each cell depends on given font size
fn layout(
area: Rect,
pixel_size: PixelSize,
) -> impl IntoIterator<Item = impl IntoIterator<Item = Rect>> {
let (width, height) = cells_per_glyph(pixel_size);
(area.top()..area.bottom())
.step_by(height as usize)
.map(move |y| {
(area.left()..area.right())
.step_by(width as usize)
.map(move |x| {
let width = min(area.right() - x, width);
let height = min(area.bottom() - y, height);
Rect::new(x, y, width, height)
})
})
}
/// Render a single grapheme into a cell by looking up the corresponding 8x8 bitmap in the
/// `BITMAPS` array and setting the corresponding cells in the buffer.
fn render_symbol(grapheme: &StyledGrapheme, area: Rect, buf: &mut Buffer, pixel_size: PixelSize) {
buf.set_style(area, grapheme.style);
let c = grapheme.symbol.chars().next().unwrap(); // TODO: handle multi-char graphemes
if let Some(glyph) = font8x8::BASIC_FONTS.get(c) {
render_glyph(glyph, area, buf, pixel_size);
}
}
/// Get the correct unicode symbol for two vertical "pixels"
const fn get_symbol_half_height(top: u8, bottom: u8) -> char {
match top {
0 => match bottom {
0 => ' ',
_ => '▄',
},
_ => match bottom {
0 => '▀',
_ => '█',
},
}
}
/// Get the correct unicode symbol for two horizontal "pixels"
const fn get_symbol_half_width(left: u8, right: u8) -> char {
match left {
0 => match right {
0 => ' ',
_ => '▐',
},
_ => match right {
0 => '▌',
_ => '█',
},
}
}
/// Get the correct unicode symbol for 2x2 "pixels"
const fn get_symbol_half_size(
top_left: u8,
top_right: u8,
bottom_left: u8,
bottom_right: u8,
) -> char {
const QUADRANT_SYMBOLS: [char; 16] = [
' ', '▘', '▝', '▀', '▖', '▌', '▞', '▛', '▗', '▚', '▐', '▜', '▄', '▙', '▟', '█',
];
let top_left = if top_left > 0 { 1 } else { 0 };
let top_right = if top_right > 0 { 1 << 1 } else { 0 };
let bottom_left = if bottom_left > 0 { 1 << 2 } else { 0 };
let bottom_right = if bottom_right > 0 { 1 << 3 } else { 0 };
QUADRANT_SYMBOLS[top_left + top_right + bottom_left + bottom_right]
}
/// Render a single 8x8 glyph into a cell by setting the corresponding cells in the buffer.
fn render_glyph(glyph: [u8; 8], area: Rect, buf: &mut Buffer, pixel_size: PixelSize) {
let (width, height) = cells_per_glyph(pixel_size);
let glyph_vertical_index = (0..glyph.len()).step_by(8 / height as usize);
let glyph_horizontal_bit_selector = (0..8).step_by(8 / width as usize);
for (row, y) in glyph_vertical_index.zip(area.top()..area.bottom()) {
for (col, x) in glyph_horizontal_bit_selector
.clone()
.zip(area.left()..area.right())
{
let cell = buf.get_mut(x, y);
let symbol_character = match pixel_size {
PixelSize::Full => match glyph[row] & (1 << col) {
0 => ' ',
_ => '█',
},
PixelSize::HalfHeight => {
let top = glyph[row] & (1 << col);
let bottom = glyph[row + 1] & (1 << col);
get_symbol_half_height(top, bottom)
}
PixelSize::HalfWidth => {
let left = glyph[row] & (1 << col);
let right = glyph[row] & (1 << (col + 1));
get_symbol_half_width(left, right)
}
PixelSize::Quadrant => {
let top_left = glyph[row] & (1 << col);
let top_right = glyph[row] & (1 << (col + 1));
let bottom_left = glyph[row + 1] & (1 << col);
let bottom_right = glyph[row + 1] & (1 << (col + 1));
get_symbol_half_size(top_left, top_right, bottom_left, bottom_right)
}
};
cell.set_char(symbol_character);
}
}
}
#[cfg(test)]
mod tests {
use ratatui::style::Stylize;
use super::*;
type Result<T> = std::result::Result<T, Box<dyn std::error::Error>>;
#[test]
fn build() -> Result<()> {
let lines = vec![Line::from(vec!["Hello".red(), "World".blue()])];
let style = Style::new().green();
let pixel_size = PixelSize::default();
assert_eq!(
BigTextBuilder::default()
.lines(lines.clone())
.style(style)
.build()?,
BigText {
lines,
style,
pixel_size
}
);
Ok(())
}
#[test]
fn render_single_line() -> Result<()> {
let big_text = BigTextBuilder::default()
.lines(vec![Line::from("SingleLine")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 80, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
" ████ ██ ███ ████ ██ ",
"██ ██ ██ ██ ",
"███ ███ █████ ███ ██ ██ ████ ██ ███ █████ ████ ",
" ███ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ",
" ███ ██ ██ ██ ██ ██ ██ ██████ ██ █ ██ ██ ██ ██████ ",
"██ ██ ██ ██ ██ █████ ██ ██ ██ ██ ██ ██ ██ ██ ",
" ████ ████ ██ ██ ██ ████ ████ ███████ ████ ██ ██ ████ ",
" █████ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_truncated() -> Result<()> {
let big_text = BigTextBuilder::default()
.lines(vec![Line::from("Truncated")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 70, 6));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"██████ █ ███",
"█ ██ █ ██ ██",
" ██ ██ ███ ██ ██ █████ ████ ████ █████ ████ ██",
" ██ ███ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ █████",
" ██ ██ ██ ██ ██ ██ ██ ██ █████ ██ ██████ ██ ██",
" ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██ █ ██ ██ ██",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_multiple_lines() -> Result<()> {
let big_text = BigTextBuilder::default()
.lines(vec![Line::from("Multi"), Line::from("Lines")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 16));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"██ ██ ███ █ ██ ",
"███ ███ ██ ██ ",
"███████ ██ ██ ██ █████ ███ ",
"███████ ██ ██ ██ ██ ██ ",
"██ █ ██ ██ ██ ██ ██ ██ ",
"██ ██ ██ ██ ██ ██ █ ██ ",
"██ ██ ███ ██ ████ ██ ████ ",
" ",
"████ ██ ",
" ██ ",
" ██ ███ █████ ████ █████ ",
" ██ ██ ██ ██ ██ ██ ██ ",
" ██ █ ██ ██ ██ ██████ ████ ",
" ██ ██ ██ ██ ██ ██ ██ ",
"███████ ████ ██ ██ ████ █████ ",
" ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_widget_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.lines(vec![Line::from("Styled")])
.style(Style::new().bold())
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 48, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
" ████ █ ███ ███ ".bold(),
"██ ██ ██ ██ ██ ".bold(),
"███ █████ ██ ██ ██ ████ ██ ".bold(),
" ███ ██ ██ ██ ██ ██ ██ █████ ".bold(),
" ███ ██ ██ ██ ██ ██████ ██ ██ ".bold(),
"██ ██ ██ █ █████ ██ ██ ██ ██ ".bold(),
" ████ ██ ██ ████ ████ ███ ██ ".bold(),
" █████ ".bold(),
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_line_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.lines(vec![
Line::from("Red".red()),
Line::from("Green".green()),
Line::from("Blue".blue()),
])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 24));
big_text.render(buf.area, &mut buf);
let mut expected = Buffer::with_lines([
"██████ ███ ",
" ██ ██ ██ ",
" ██ ██ ████ ██ ",
" █████ ██ ██ █████ ",
" ██ ██ ██████ ██ ██ ",
" ██ ██ ██ ██ ██ ",
"███ ██ ████ ███ ██ ",
" ",
" ████ ",
" ██ ██ ",
"██ ██ ███ ████ ████ █████ ",
"██ ███ ██ ██ ██ ██ ██ ██ ██ ",
"██ ███ ██ ██ ██████ ██████ ██ ██ ",
" ██ ██ ██ ██ ██ ██ ██ ",
" █████ ████ ████ ████ ██ ██ ",
" ",
"██████ ███ ",
" ██ ██ ██ ",
" ██ ██ ██ ██ ██ ████ ",
" █████ ██ ██ ██ ██ ██ ",
" ██ ██ ██ ██ ██ ██████ ",
" ██ ██ ██ ██ ██ ██ ",
"██████ ████ ███ ██ ████ ",
" ",
]);
expected.set_style(Rect::new(0, 0, 24, 8), Style::new().red());
expected.set_style(Rect::new(0, 8, 40, 8), Style::new().green());
expected.set_style(Rect::new(0, 16, 32, 8), Style::new().blue());
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_height_single_line() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfHeight)
.lines(vec![Line::from("SingleLine")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 80, 4));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▄█▀▀█▄ ▀▀ ▀██ ▀██▀ ▀▀ ",
"▀██▄ ▀██ ██▀▀█▄ ▄█▀▀▄█▀ ██ ▄█▀▀█▄ ██ ▀██ ██▀▀█▄ ▄█▀▀█▄ ",
"▄▄ ▀██ ██ ██ ██ ▀█▄▄██ ██ ██▀▀▀▀ ██ ▄█ ██ ██ ██ ██▀▀▀▀ ",
" ▀▀▀▀ ▀▀▀▀ ▀▀ ▀▀ ▄▄▄▄█▀ ▀▀▀▀ ▀▀▀▀ ▀▀▀▀▀▀▀ ▀▀▀▀ ▀▀ ▀▀ ▀▀▀▀ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_height_truncated() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfHeight)
.lines(vec![Line::from("Truncated")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 70, 3));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"█▀██▀█ ▄█ ▀██",
" ██ ▀█▄█▀█▄ ██ ██ ██▀▀█▄ ▄█▀▀█▄ ▀▀▀█▄ ▀██▀▀ ▄█▀▀█▄ ▄▄▄██",
" ██ ██ ▀▀ ██ ██ ██ ██ ██ ▄▄ ▄█▀▀██ ██ ▄ ██▀▀▀▀ ██ ██",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_height_multiple_lines() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfHeight)
.lines(vec![Line::from("Multi"), Line::from("Lines")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"██▄ ▄██ ▀██ ▄█ ▀▀ ",
"███████ ██ ██ ██ ▀██▀▀ ▀██ ",
"██ ▀ ██ ██ ██ ██ ██ ▄ ██ ",
"▀▀ ▀▀ ▀▀▀ ▀▀ ▀▀▀▀ ▀▀ ▀▀▀▀ ",
"▀██▀ ▀▀ ",
" ██ ▀██ ██▀▀█▄ ▄█▀▀█▄ ▄█▀▀▀▀ ",
" ██ ▄█ ██ ██ ██ ██▀▀▀▀ ▀▀▀█▄ ",
"▀▀▀▀▀▀▀ ▀▀▀▀ ▀▀ ▀▀ ▀▀▀▀ ▀▀▀▀▀ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_height_widget_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfHeight)
.lines(vec![Line::from("Styled")])
.style(Style::new().bold())
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 48, 4));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▄█▀▀█▄ ▄█ ▀██ ▀██ ".bold(),
"▀██▄ ▀██▀▀ ██ ██ ██ ▄█▀▀█▄ ▄▄▄██ ".bold(),
"▄▄ ▀██ ██ ▄ ▀█▄▄██ ██ ██▀▀▀▀ ██ ██ ".bold(),
" ▀▀▀▀ ▀▀ ▄▄▄▄█▀ ▀▀▀▀ ▀▀▀▀ ▀▀▀ ▀▀ ".bold(),
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_height_line_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfHeight)
.lines(vec![
Line::from("Red".red()),
Line::from("Green".green()),
Line::from("Blue".blue()),
])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 12));
big_text.render(buf.area, &mut buf);
let mut expected = Buffer::with_lines([
"▀██▀▀█▄ ▀██ ",
" ██▄▄█▀ ▄█▀▀█▄ ▄▄▄██ ",
" ██ ▀█▄ ██▀▀▀▀ ██ ██ ",
"▀▀▀ ▀▀ ▀▀▀▀ ▀▀▀ ▀▀ ",
" ▄█▀▀█▄ ",
"██ ▀█▄█▀█▄ ▄█▀▀█▄ ▄█▀▀█▄ ██▀▀█▄ ",
"▀█▄ ▀██ ██ ▀▀ ██▀▀▀▀ ██▀▀▀▀ ██ ██ ",
" ▀▀▀▀▀ ▀▀▀▀ ▀▀▀▀ ▀▀▀▀ ▀▀ ▀▀ ",
"▀██▀▀█▄ ▀██ ",
" ██▄▄█▀ ██ ██ ██ ▄█▀▀█▄ ",
" ██ ██ ██ ██ ██ ██▀▀▀▀ ",
"▀▀▀▀▀▀ ▀▀▀▀ ▀▀▀ ▀▀ ▀▀▀▀ ",
]);
expected.set_style(Rect::new(0, 0, 24, 4), Style::new().red());
expected.set_style(Rect::new(0, 4, 40, 4), Style::new().green());
expected.set_style(Rect::new(0, 8, 32, 4), Style::new().blue());
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_width_single_line() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfWidth)
.lines(vec![Line::from("SingleLine")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▐█▌ █ ▐█ ██ █ ",
"█ █ █ ▐▌ ",
"█▌ ▐█ ██▌ ▐█▐▌ █ ▐█▌ ▐▌ ▐█ ██▌ ▐█▌ ",
"▐█ █ █ █ █ █ █ █ █ ▐▌ █ █ █ █ █ ",
" ▐█ █ █ █ █ █ █ ███ ▐▌ ▌ █ █ █ ███ ",
"█ █ █ █ █ ▐██ █ █ ▐▌▐▌ █ █ █ █ ",
"▐█▌ ▐█▌ █ █ █ ▐█▌ ▐█▌ ███▌▐█▌ █ █ ▐█▌ ",
" ██▌ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_width_truncated() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfWidth)
.lines(vec![Line::from("Truncated")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 35, 6));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"███ ▐ ▐█",
"▌█▐ █ █",
" █ █▐█ █ █ ██▌ ▐█▌ ▐█▌ ▐██ ▐█▌ █",
" █ ▐█▐▌█ █ █ █ █ █ █ █ █ █ ▐██",
" █ ▐▌▐▌█ █ █ █ █ ▐██ █ ███ █ █",
" █ ▐▌ █ █ █ █ █ █ █ █ █▐ █ █ █",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_width_multiple_lines() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfWidth)
.lines(vec![Line::from("Multi"), Line::from("Lines")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 20, 16));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"█ ▐▌ ▐█ ▐ █ ",
"█▌█▌ █ █ ",
"███▌█ █ █ ▐██ ▐█ ",
"███▌█ █ █ █ █ ",
"█▐▐▌█ █ █ █ █ ",
"█ ▐▌█ █ █ █▐ █ ",
"█ ▐▌▐█▐▌▐█▌ ▐▌ ▐█▌ ",
" ",
"██ █ ",
"▐▌ ",
"▐▌ ▐█ ██▌ ▐█▌ ▐██ ",
"▐▌ █ █ █ █ █ █ ",
"▐▌ ▌ █ █ █ ███ ▐█▌ ",
"▐▌▐▌ █ █ █ █ █ ",
"███▌▐█▌ █ █ ▐█▌ ██▌ ",
" ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_width_widget_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfWidth)
.lines(vec![Line::from("Styled")])
.style(Style::new().bold())
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 24, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▐█▌ ▐ ▐█ ▐█ ".bold(),
"█ █ █ █ █ ".bold(),
"█▌ ▐██ █ █ █ ▐█▌ █ ".bold(),
"▐█ █ █ █ █ █ █ ▐██ ".bold(),
" ▐█ █ █ █ █ ███ █ █ ".bold(),
"█ █ █▐ ▐██ █ █ █ █ ".bold(),
"▐█▌ ▐▌ █ ▐█▌ ▐█▌ ▐█▐▌".bold(),
" ██▌ ".bold(),
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_width_line_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::HalfWidth)
.lines(vec![
Line::from("Red".red()),
Line::from("Green".green()),
Line::from("Blue".blue()),
])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 20, 24));
big_text.render(buf.area, &mut buf);
let mut expected = Buffer::with_lines([
"███ ▐█ ",
"▐▌▐▌ █ ",
"▐▌▐▌▐█▌ █ ",
"▐██ █ █ ▐██ ",
"▐▌█ ███ █ █ ",
"▐▌▐▌█ █ █ ",
"█▌▐▌▐█▌ ▐█▐▌ ",
" ",
" ██ ",
"▐▌▐▌ ",
"█ █▐█ ▐█▌ ▐█▌ ██▌ ",
"█ ▐█▐▌█ █ █ █ █ █ ",
"█ █▌▐▌▐▌███ ███ █ █ ",
"▐▌▐▌▐▌ █ █ █ █ ",
" ██▌██ ▐█▌ ▐█▌ █ █ ",
" ",
"███ ▐█ ",
"▐▌▐▌ █ ",
"▐▌▐▌ █ █ █ ▐█▌ ",
"▐██ █ █ █ █ █ ",
"▐▌▐▌ █ █ █ ███ ",
"▐▌▐▌ █ █ █ █ ",
"███ ▐█▌ ▐█▐▌▐█▌ ",
" ",
]);
expected.set_style(Rect::new(0, 0, 12, 8), Style::new().red());
expected.set_style(Rect::new(0, 8, 20, 8), Style::new().green());
expected.set_style(Rect::new(0, 16, 16, 8), Style::new().blue());
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn check_half_size_symbols() -> Result<()> {
assert_eq!(get_symbol_half_size(0, 0, 0, 0), ' ');
assert_eq!(get_symbol_half_size(1, 0, 0, 0), '▘');
assert_eq!(get_symbol_half_size(0, 1, 0, 0), '▝');
assert_eq!(get_symbol_half_size(1, 1, 0, 0), '▀');
assert_eq!(get_symbol_half_size(0, 0, 1, 0), '▖');
assert_eq!(get_symbol_half_size(1, 0, 1, 0), '▌');
assert_eq!(get_symbol_half_size(0, 1, 1, 0), '▞');
assert_eq!(get_symbol_half_size(1, 1, 1, 0), '▛');
assert_eq!(get_symbol_half_size(0, 0, 0, 1), '▗');
assert_eq!(get_symbol_half_size(1, 0, 0, 1), '▚');
assert_eq!(get_symbol_half_size(0, 1, 0, 1), '▐');
assert_eq!(get_symbol_half_size(1, 1, 0, 1), '▜');
assert_eq!(get_symbol_half_size(0, 0, 1, 1), '▄');
assert_eq!(get_symbol_half_size(1, 0, 1, 1), '▙');
assert_eq!(get_symbol_half_size(0, 1, 1, 1), '▟');
assert_eq!(get_symbol_half_size(1, 1, 1, 1), '█');
Ok(())
}
#[test]
fn render_half_size_single_line() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::Quadrant)
.lines(vec![Line::from("SingleLine")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 40, 4));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▟▀▙ ▀ ▝█ ▜▛ ▀ ",
"▜▙ ▝█ █▀▙ ▟▀▟▘ █ ▟▀▙ ▐▌ ▝█ █▀▙ ▟▀▙ ",
"▄▝█ █ █ █ ▜▄█ █ █▀▀ ▐▌▗▌ █ █ █ █▀▀ ",
"▝▀▘ ▝▀▘ ▀ ▀ ▄▄▛ ▝▀▘ ▝▀▘ ▀▀▀▘▝▀▘ ▀ ▀ ▝▀▘ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_size_truncated() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::Quadrant)
.lines(vec![Line::from("Truncated")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 35, 3));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▛█▜ ▟ ▝█",
" █ ▜▟▜▖█ █ █▀▙ ▟▀▙ ▝▀▙ ▝█▀ ▟▀▙ ▗▄█",
" █ ▐▌▝▘█ █ █ █ █ ▄ ▟▀█ █▗ █▀▀ █ █",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_size_multiple_lines() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::Quadrant)
.lines(vec![Line::from("Multi"), Line::from("Lines")])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 20, 8));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"█▖▟▌ ▝█ ▟ ▀ ",
"███▌█ █ █ ▝█▀ ▝█ ",
"█▝▐▌█ █ █ █▗ █ ",
"▀ ▝▘▝▀▝▘▝▀▘ ▝▘ ▝▀▘ ",
"▜▛ ▀ ",
"▐▌ ▝█ █▀▙ ▟▀▙ ▟▀▀ ",
"▐▌▗▌ █ █ █ █▀▀ ▝▀▙ ",
"▀▀▀▘▝▀▘ ▀ ▀ ▝▀▘ ▀▀▘ ",
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_size_widget_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::Quadrant)
.lines(vec![Line::from("Styled")])
.style(Style::new().bold())
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 24, 4));
big_text.render(buf.area, &mut buf);
let expected = Buffer::with_lines([
"▟▀▙ ▟ ▝█ ▝█ ".bold(),
"▜▙ ▝█▀ █ █ █ ▟▀▙ ▗▄█ ".bold(),
"▄▝█ █▗ ▜▄█ █ █▀▀ █ █ ".bold(),
"▝▀▘ ▝▘ ▄▄▛ ▝▀▘ ▝▀▘ ▝▀▝▘".bold(),
]);
assert_eq!(buf, expected);
Ok(())
}
#[test]
fn render_half_size_line_style() -> Result<()> {
let big_text = BigTextBuilder::default()
.pixel_size(PixelSize::Quadrant)
.lines(vec![
Line::from("Red".red()),
Line::from("Green".green()),
Line::from("Blue".blue()),
])
.build()?;
let mut buf = Buffer::empty(Rect::new(0, 0, 20, 12));
big_text.render(buf.area, &mut buf);
let mut expected = Buffer::with_lines([
"▜▛▜▖ ▝█ ",
"▐▙▟▘▟▀▙ ▗▄█ ",
"▐▌▜▖█▀▀ █ █ ",
"▀▘▝▘▝▀▘ ▝▀▝▘ ",
"▗▛▜▖ ",
"█ ▜▟▜▖▟▀▙ ▟▀▙ █▀▙ ",
"▜▖▜▌▐▌▝▘█▀▀ █▀▀ █ █ ",
" ▀▀▘▀▀ ▝▀▘ ▝▀▘ ▀ ▀ ",
"▜▛▜▖▝█ ",
"▐▙▟▘ █ █ █ ▟▀▙ ",
"▐▌▐▌ █ █ █ █▀▀ ",
"▀▀▀ ▝▀▘ ▝▀▝▘▝▀▘ ",
]);
expected.set_style(Rect::new(0, 0, 12, 4), Style::new().red());
expected.set_style(Rect::new(0, 4, 20, 4), Style::new().green());
expected.set_style(Rect::new(0, 8, 16, 4), Style::new().blue());
assert_eq!(buf, expected);
Ok(())
}
}

31
examples/demo2/destroy.rs
View file

@ -4,19 +4,17 @@ use ratatui::{
buffer::Buffer,
layout::{Flex, Layout, Rect},
style::{Color, Style},
text::Text,
widgets::Widget,
Frame,
};
use unicode_width::UnicodeWidthStr;
use crate::big_text::{BigTextBuilder, PixelSize};
/// delay the start of the animation so it doesn't start immediately
const DELAY: usize = 240;
const DELAY: usize = 120;
/// higher means more pixels per frame are modified in the animation
const DRIP_SPEED: usize = 50;
const DRIP_SPEED: usize = 500;
/// delay the start of the text animation so it doesn't start immediately after the initial delay
const TEXT_DELAY: usize = 240;
const TEXT_DELAY: usize = 180;
/// Destroy mode activated by pressing `d`
pub fn destroy(frame: &mut Frame<'_>) {
@ -86,19 +84,18 @@ fn text(frame_count: usize, area: Rect, buf: &mut Buffer) {
return;
}
let line = "RATATUI";
let big_text = BigTextBuilder::default()
.lines([line.into()])
.pixel_size(PixelSize::Full)
.style(Style::new().fg(Color::Rgb(255, 0, 0)))
.build()
.unwrap();
// the font size is 8x8 for each character and we have 1 line
let area = centered_rect(area, line.width() as u16 * 8, 8);
let logo = indoc::indoc! {"
██████ ████ ██████ ████ ██████ ██ ██ ██
██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██
██████ ████████ ██ ████████ ██ ██ ██ ██
██ ██ ██ ██ ██ ██ ██ ██ ██ ██ ██
██ ██ ██ ██ ██ ██ ██ ██ ████ ██
"};
let logo_text = Text::styled(logo, Color::Rgb(255, 255, 255));
let area = centered_rect(area, logo_text.width() as u16, logo_text.height() as u16);
let mask_buf = &mut Buffer::empty(area);
big_text.render(area, mask_buf);
logo_text.render(area, mask_buf);
let percentage = (sub_frame as f64 / 480.0).clamp(0.0, 1.0);

1
examples/demo2/main.rs
View file

@ -20,7 +20,6 @@
)]
mod app;
mod big_text;
mod colors;
mod destroy;
mod errors;

4
examples/vhs/demo2-destroy.tape
View file

@ -10,9 +10,9 @@ Set Width 1120
Set Height 480
Set Padding 0
Hide
Type "cargo run --example demo2 --features crossterm,widget-calendar"
Type "cargo run --example demo2 --features crossterm,palette,widget-calendar"
Enter
Sleep 2s
Show
Type "d"
Sleep 30s
Sleep 20s
